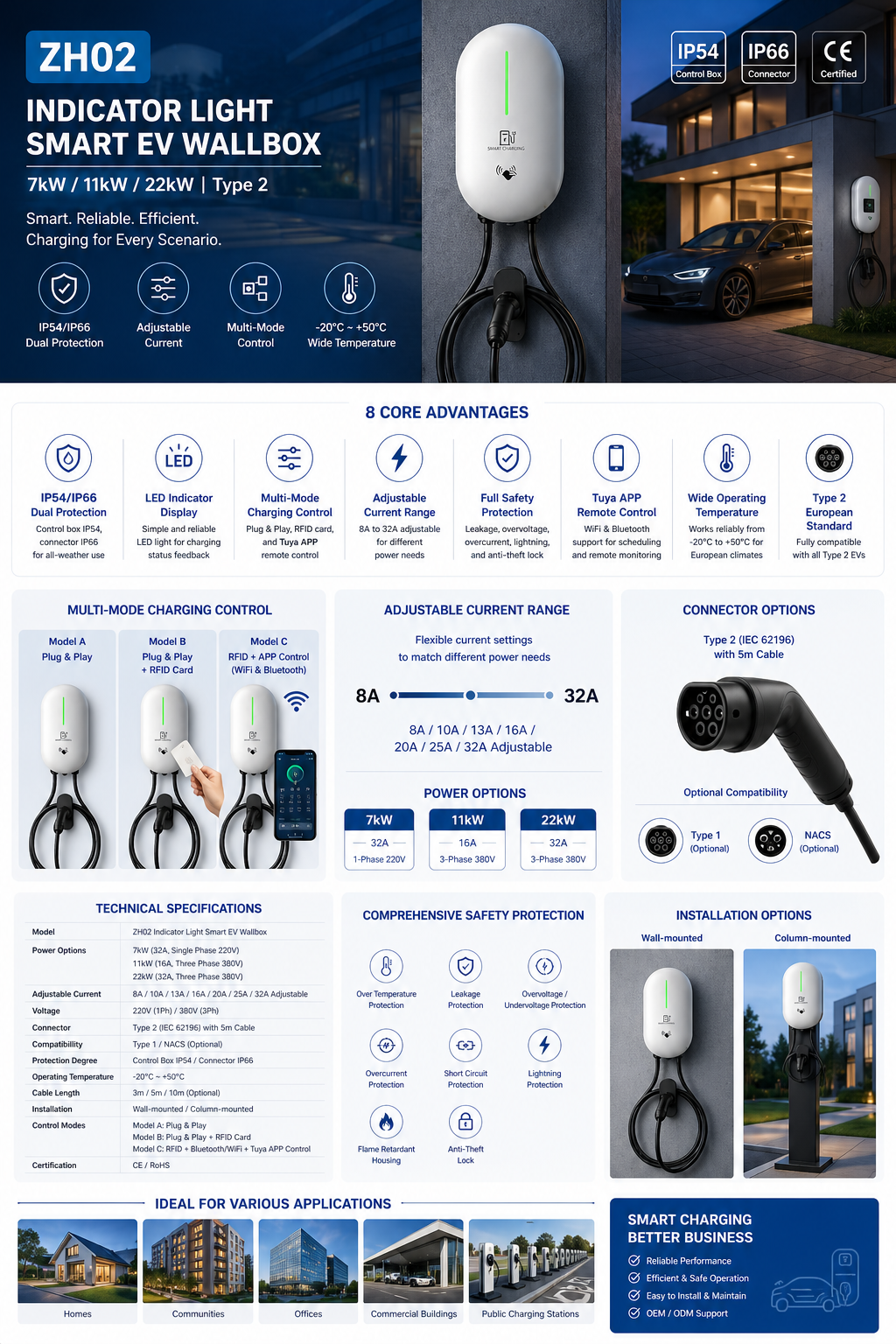

ZH02 Indicator Light Smart EV Wallbox | 7kW/11kW/22kW | Type 2
A sleek and intelligent 7kW/11kW/22kW charging station featuring a minimalist LED Indicator Light for intuitive status feedback. Fully integrated with the Tuya APP for remote WiFi/Bluetooth control, it offers versatile access via RFID Card and Plug & Play. Designed for reliability in any climate, the ZH02 features dual IP54/IP66 protection, Type 2 European standard compatibility, and flexible Wall-mounted or Column-mounted installation options for homes and commercial buildings.
| Power | 7kW / 11kW / 22kW |
| Current | 8A/10A/13A/16A/20A/25A/32A Adjustable |
| Version | Model A: Plug & Play | Model B: RFID | Model C: APP+RFID |
| Connector | Type 2 (IEC 62196) | 5M Cable |
| Protection | Control Box IP54 / Connector IP66 |
| Installation | Wall-mounted / Column-mounted |
ZH03 Indicator Light Smart EV Wallbox Specifications
| Spec Key | Detailed Parameters |
|---|---|
| Model | ZH03 Indicator Light Smart EV Wallbox |
| Power & Current |
• 7kW = 32A (Single Phase 220V)
• 11kW = 16A (Three Phase 380V)
• 22kW = 32A (Three Phase 380V)
• Adjustable: 8A/10A/13A/16A/20A/25A/32A
|
| Charging Modes |
• Model A: Plug & Play
• Model B: Plug & Play + RFID Card
• Model C: RFID + Bluetooth/WiFi + Tuya APP
|
| Display | LED Indicator Light |
| Protection Grade | Control Box IP54 | Connector IP66 |
| Operating Temperature | -20°C ~ +50°C |
| Safety Features | Over Temperature / Leakage / Overvoltage / Undervoltage / Overcurrent / Short Circuit / Lightning Protection / Flame Retardant / Anti-Theft Lock |
| Installation | Wall-mounted / Column-mounted |
| Cable Length | 3m / 5m / 10m |
Security & Smart Functions
Comprehensive protection and multi-mode control for KQ03 Indicator Light Wallbox.
Dual Protection
Control box IP54, connector IP66 for all-weather use.
Status Display
Simple and reliable LED light for charging status feedback.
Remote Control
WiFi & Bluetooth, schedule & monitor charging remotely.
Card Authorization
Safe charging for home, apartment and commercial scenarios.
Current Range
8A to 32A adjustable for different power needs.
Full Protection
Leakage, overvoltage, overcurrent, lightning and anti-theft lock.
Wide Operating Temp
Works reliably from -20°C to +50°C for European climates.
European Standard
Fully compatible with all European Type 2 EVs.
Questions & Answers
Model A: Plug & Play only.
Model B: Plug & Play + RFID card control.
Model C: RFID card + Tuya APP (WiFi/Bluetooth) remote control & schedule charging.
7kW = 32A (Single Phase 220V)
11kW = 16A (Three Phase 380V)
22kW = 32A (Three Phase 380V)
Current adjustable: 8A/10A/13A/16A/20A/25A/32A.
The LED indicator light shows different colors/flashing patterns to indicate charging status, such as standby, charging, fully charged, or fault.
Yes. It has IP54 protection for the control box and IP66 for the connector, working reliably from -20°C to +50°C, suitable for outdoor use.
Yes. This wallbox uses the standard Type 2 (IEC 62196) connector and is compatible with all European electric and plug-in hybrid vehicles.
