QD10 Smart Portable EV Charger 7kW / 3.5kW
The Zhiheway QD10 is a premium Mode 2 smart portable EV charger engineered for global electric vehicles. Featuring an ultra-compact box-free integrated architecture, it combines Wi-Fi & Bluetooth App control for off-peak scheduling and dynamic current switching with IP65 & IK10 rugged protection, delivering a safe, high-performance EV charging solution for residential and fleet applications.
- ✓ Integrated Box-Free Design: Mode 2 PABC smart circuit built into the gun body for maximum space efficiency and durability.
- ✓ Smart Connectivity: Full App integration for remote monitoring, real-time energy tracking, and off-peak charging schedules.
- ✓ Global Grid Compatibility: Supports Type 2 (IEC 62196), Type 1 (SAE J1772), and GB/T standards with customizable regional power plugs.
- ✓ Industrial Safety Matrix: Built-in Type B RCD (30mA AC + 6mA DC), over-temperature monitoring, and UL94 V-0 flame-retardant housing.

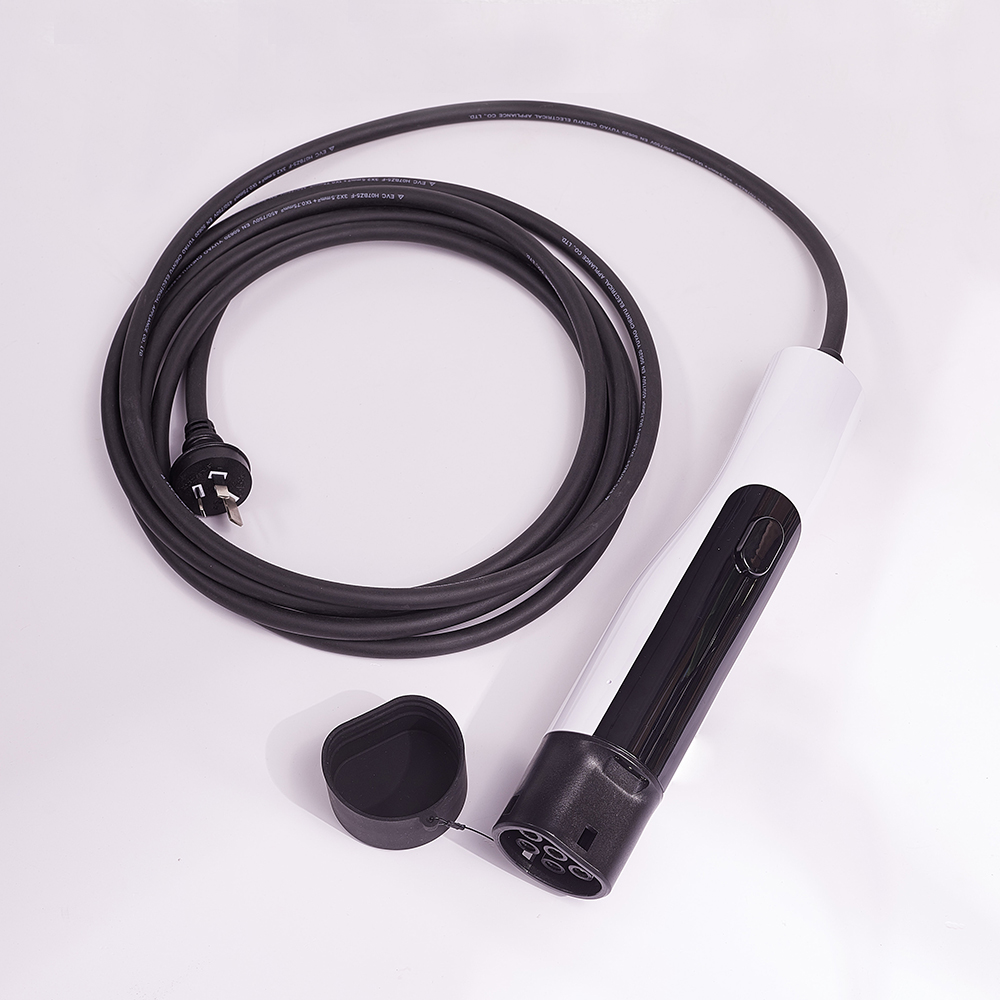

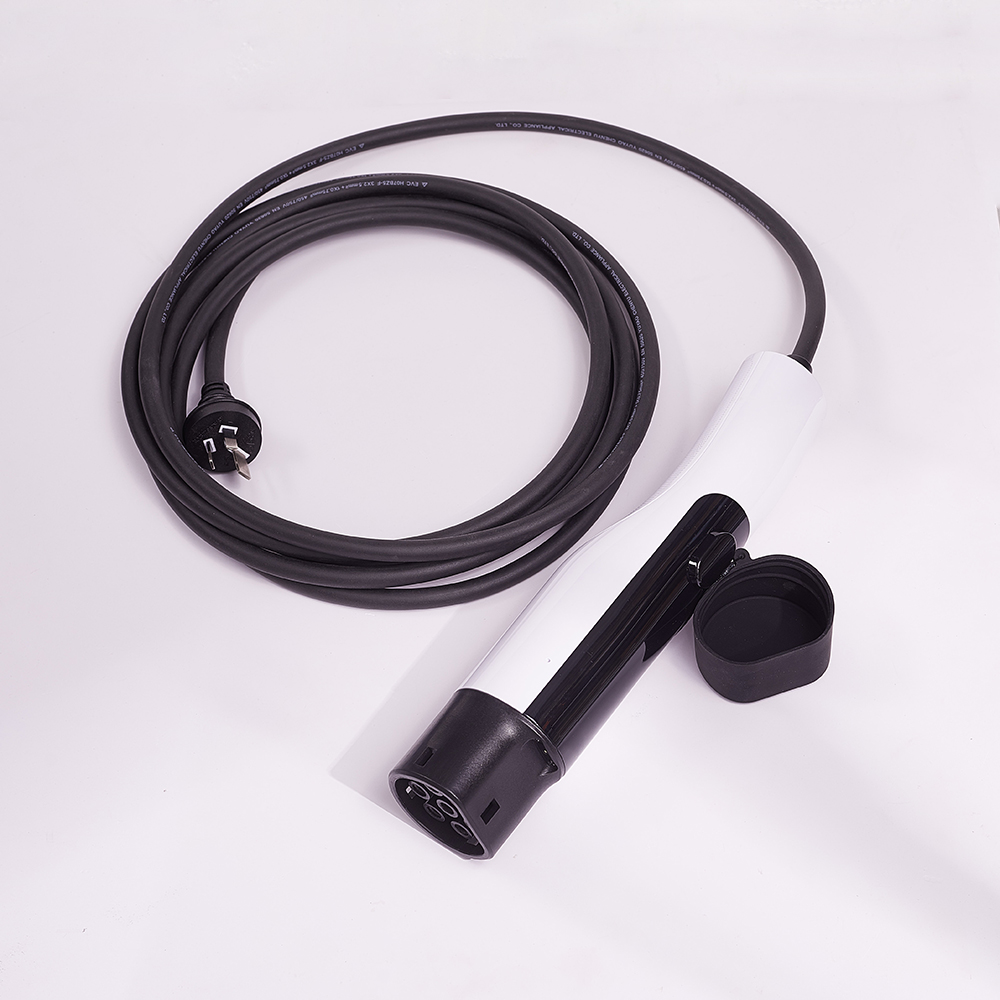

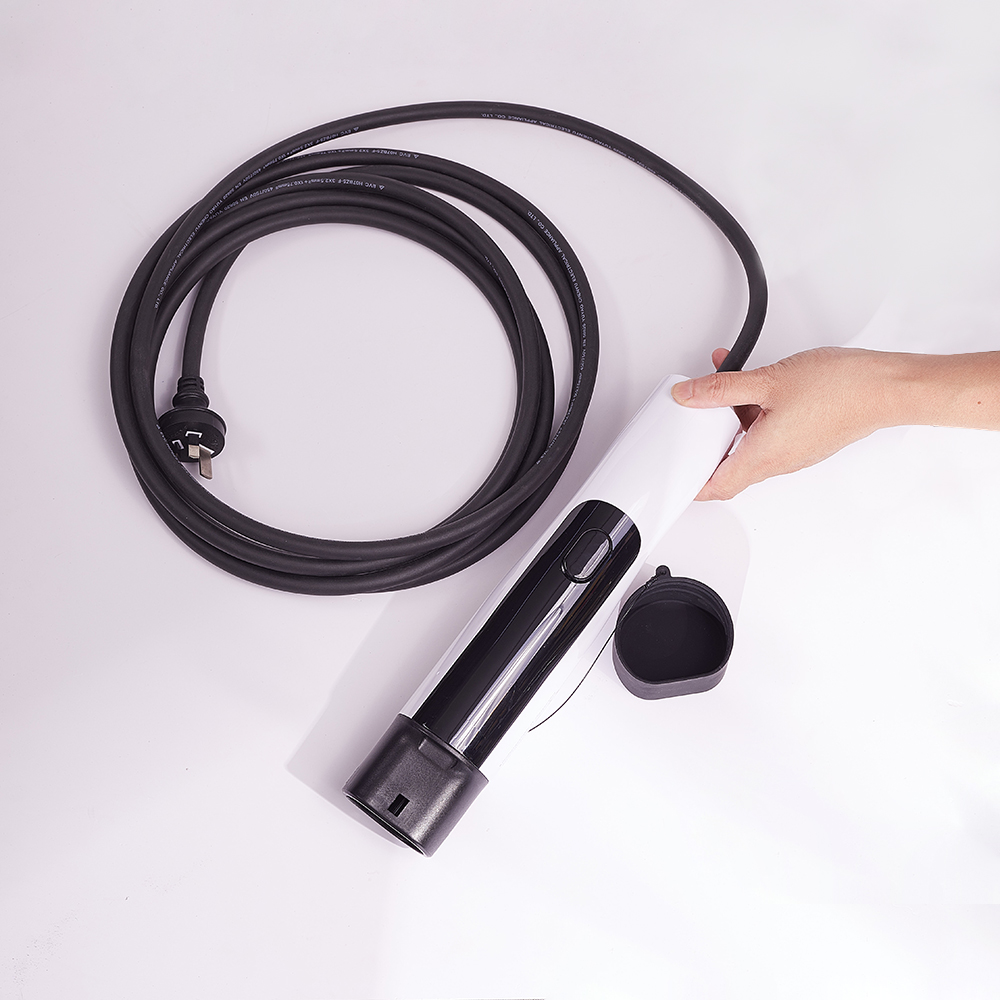

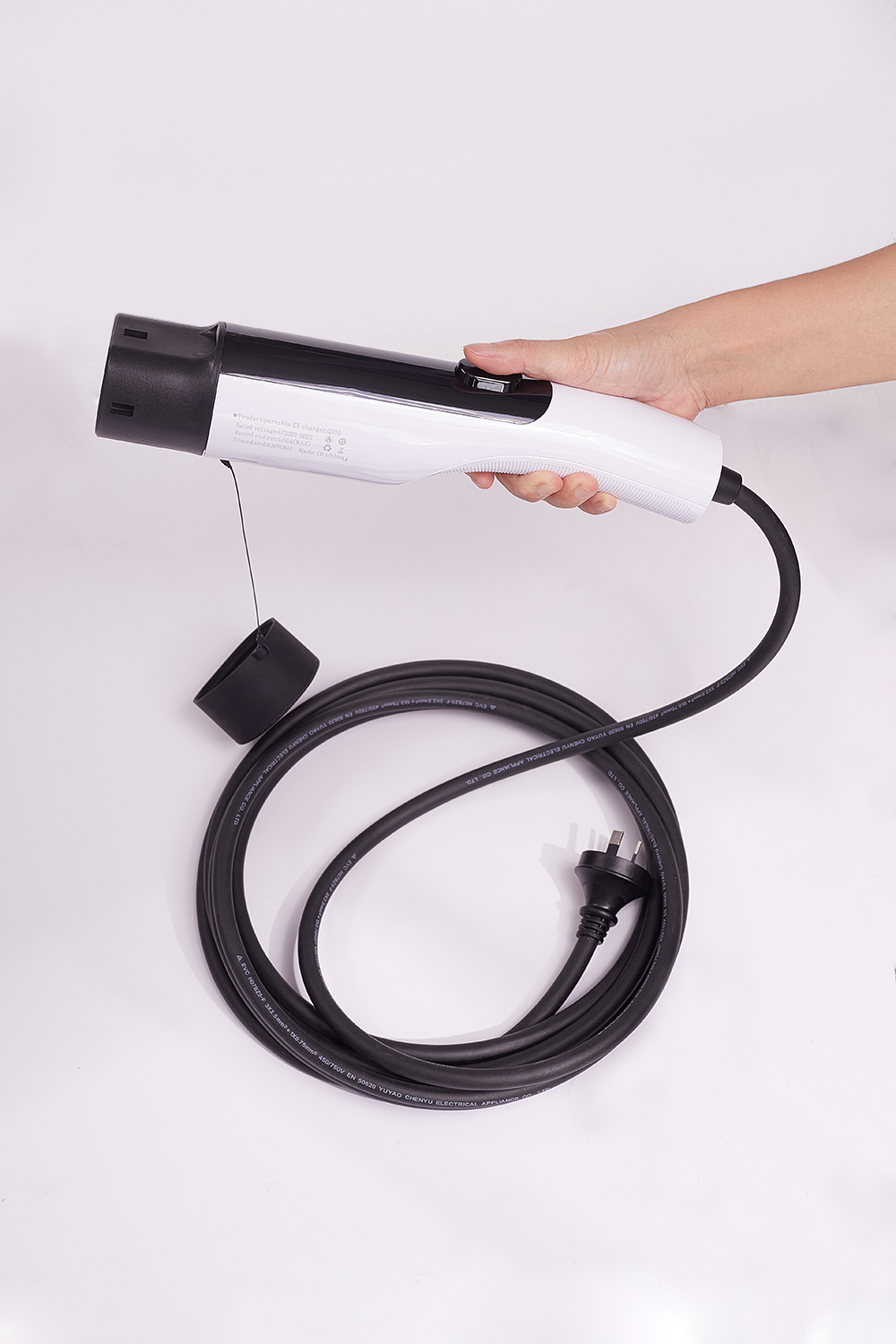

QD10 Ultra-Light All-in-One Portable EV Charger
Discover the next-generation QD10—featuring an ultra-lightweight 0.6kg All-in-One handle design, built-in LED lighting, robust IP65/IK10 protection, and complete Smart Life App control.
- Ultralight All-In-One Handle: Weighs only 0.6kg with integrated control box and built-in connector lighting.
- Smart Current & Schedule Control: 8A/10A/13A/16A switchable current with 1–12h delay timer via Smart Life App.
- Rugged & Certified Safety: Industrial-grade IP65 waterproof, IK10 impact resistance with CE, FCC, and ISO9001 compliance.
- Universal Plug Adaptability: Compatible with Type 2/CCS2, Type 1, GBT, NACS, and all major global wall plugs.
QD10 Intelligent Technical Specifications
| Spec Key | Detailed Parameters |
|---|---|
| Design Concept | Upgraded All-in-One DesignBox-Free / Sleek & Portable |
| Display & UI | Integrated LED Display (kWh / A / V / Time / Temp) + APP Control |
| Charging Mode | Mode 2 (Plug & Play / Wi-Fi & Bluetooth APP Control) |
| Rated Power | 3.5kW / 7kW (Max 32A) |
| Current Adjustment | Adjustable Current via APP / Touch Switching (Max 16A / 32A) |
| Plug Type | Global Options: EU Schuko, UK 3-Pin, AU, RSA, NEMA 6-20/14-50, CEE Industrial |
| Protection Level | IP65 Waterproof Rating | IK10 Impact Resistance Rating |
| Operating Temp | -20°C to +50°C (All-Weather Extreme Temp Resistance) |
| Core Functions |
• Smart Scheduled Charging: App-controlled off-peak charging to save electricity
• Full Safety Protection: Built-in RCD (30mA AC + 6mA DC) & Over-temperature Protection
• Connector Standards: Type 2 (IEC 62196) / Type 1 (SAE J1772) / GB/T 44262
|
| Material | High-Strength PC Housing + Durable TPU Cable |
| Cable Length | 5m (Customizable for B2B orders) |
QD10 Security Matrix Protection
Next-generation multi-layer protection matrix designed for extreme environments.
Mode 2 PABC
Advanced control architecture integrated directly into the connector structure.
Dual Connectivity
Wi-Fi & Bluetooth App control for smart scheduling and current tuning.
Type B Protection
Built-in RCD (30mA AC + 6mA DC) for total ground-fault protection.
IP65 Rating
High-grade dust and waterproof enclosure built for severe weather.
IK10 Armor
Highest level impact resistance protection against physical damage.
Thermal Safeguard
Real-time over-temperature monitoring with automatic power adjustment.
LED Screen
Real-time data feedback showing voltage, current, power, and charging time.
Durable TPU
High-durability TPU cable resistant to abrasion, oil, and extreme cold.
Questions & Answers
No, the QD10 is designed with an upgraded box-free integrated design. By integrating the Mode 2 PABC smart control system directly into the charger body, it eliminates the heavy external control box for maximum portability and sleek aesthetics.
The QD10 supports dual Wi-Fi and Bluetooth App control along with an integrated LED screen. Through the App, users can schedule charging times for off-peak rates, adjust current dynamically, and monitor real-time data including kWh, voltage, current, and temperature.
The QD10 comes in 3.5kW (16A) and 7kW (32A) power configurations. It offers wide regional plug compatibility including EU Schuko, UK 3-Pin, AU, RSA, BRA, NEMA 6-20/14-50, and CEE Industrial plugs across Type 2, Type 1, and GBT standards.
The QD10 features an IP65 waterproof rating and a top-tier IK10 impact resistance rating. Coupled with an operating temperature range of -20°C to +50°C and durable TPU cabling, it is engineered for heavy-duty outdoor weather and accidental collisions.
Yes, as a specialized B2B supplier, we provide full OEM/ODM customization (branding, custom cable lengths, and plug configurations). The QD10 is fully compliant with international safety standards, featuring CE, FCC, 3C, IP65, IK10 certifications, and Type B RCD (30mA AC + 6mA DC) protection.
